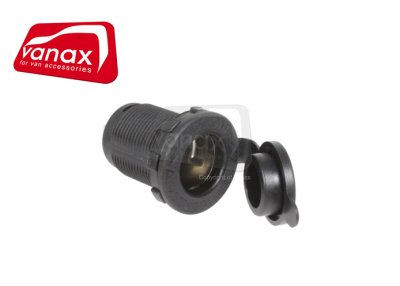

Panel Mount Cigar Lighter Power Socket - 12/24V 20A Max
Description
Panel mounted cigar lighter style power socket with cover.
Ideal for mounting in a dashboard or control panel.
Fits in a standard 29mm diameter panel hole and is secured from behind using a nut over the threaded body.
Can be fitted to the following panels and surface mount pods:
Single, twin and triple hole panel
Single, twin and triple hole pod
- Nominal system voltage: 12V or 24V DC
- Max. current: 20A (@ 12V)
- Connections: 6.3mm male blades with polarity markings
- Overall max. dimensions: 56.5 (L) x 36.8 (Dia) mm
- Panel hole diameter required: 29mm
- Protrusion from front of panel: 9mm (including cover)
- Clearance required behind panel: 55mm (approx.)
- Part Number: 12VP/P01722
