Description

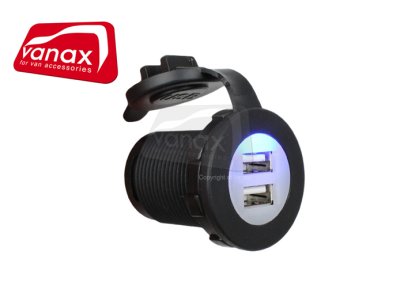

Panel mounted twin USB power socket with cover. Output of 5V and 2.1A max. and features a blue LED backlight to indicate that it's powered. It can be used in 12V or 24V systems and is ideal for mounting in a dashboard or control panel. Fits in a standard 29mm diameter panel hole and is secured from behind using a nut over the threaded body.
We have a range of panels and surface mounting pods available into which this socket can be fitted (see further info below). These panels and pods also accept our panel mounted 12V power socket, voltmeter, battery meter and ammeter, allowing you to create your own modular system.
Can be fitted to the following panels and surface mount pods:
Single hole panel
Twin hole panel
Triple hole panel
Single hole pod
Twin hole pod
Triple hole pod
- Nominal input voltage: 12V or 24V DC
- Output voltage: 5V DC
- Max. current: 2.1A
- Reverse polarity protection: Yes
- Connections: 6.3mm male blades with polarity markings
- Overall max. dimensions: 54 (L) x 36.8 (Dia) mm
- Panel hole diameter required: 29mm
- Meter face diameter: 36.8mm
- Protrusion from front of panel: 8mm (jncluding cover)
- Clearance required behind panel: 55mm (approx.)
- Part Number: 12VP/P01724/GS20312
