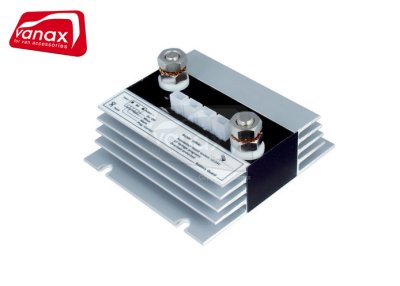

Battery Protector - 200A 12/24V
Programmable Battery Guard is the ideal solution for operators and installers,
when batteries need to be protected from heavy discharge due to additional loads
being fitted.
Installation: the simplicity of connections makes it ideal for both OEM and Aftermarket installations.
Ten Voltage Settings: the system has 10 voltage settingsfrom 10 - 16V that are easily set by the vehicle builder/installer
Manual Isolation: there is also the option to wire in a switch for remote manual
isolation of the loads.
Alarm: option available to sound buzzer/alarm after 12 seconds at low voltage
setting if there is no change in the voltage after a further 90 seconds the BG will shut
down the loads and the alarm will be stopped.
Overvoltage: at overvoltage 16V (32V) the BG will shut down immediately to protect
the equipment and pulse the alarm to alert the operator.
BG40 Technical Specifications
Maximum load (shut down current) 200A (45A)
Dual Voltage - auto deyects if fitted to 12v or 24V
Peak Current - 480A - shuts down at overload after 5 secs, start-up after 1 min
Watertight IP66 enclosure
Pt no: BG200
