100 amp solid state battery guard that will monitor the source voltage and disconnect the equipment from the battery if the voltage falls below a pre-determined level.

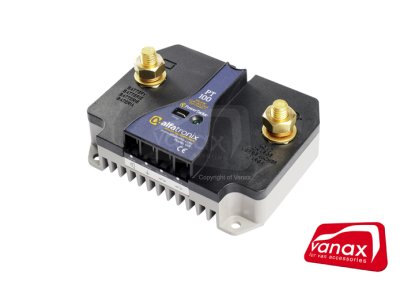

The PowerTector Battery Guard is a solid state device that will monitor the battery voltage and disconnect the equipment from the battery if the voltage falls below a pre-determined level.

The battery guard ensures that there is always sufficient voltage remaining in the battery to start a vehicle engine or ensuring power is available for other critical applications. The total discharge of a lead acid battery can cause damage to the internal cells significantly reducing the life of a battery, so the battery guard can also be set to disconnect equipment at a lower voltage that will protect the battery from total discharge, while allowing the maximum battery usage.

The units are pre-programmed for a selection of scenarios offering higher and lower disconnect voltages allowing users to select a programme to suit their needs from battery protect or shielding key equipment. Other features include, the terminals being insulated using a solid polycarbonate top assembly preventing accidental short circuit, multifunction LED provides programming and status information as well as options for additional visual or audible problem indicators. Ideal for protecting communications gear and ensuring enough charge for starting a vehicle engine.

Features

• Eliminates possibility of a discharged battery
• Fully programmable battery guard
• Lifetime Guarantee
• 12V/24V Automatic selection
• 100 amps rating
• Alarm feature and disconnect feature
• Over current and over temperature sensing circuit
• E mark, AES spec 5, CE and IP65 certification
• LED indicates operational status
• Manual shutdown facility
• Compact size
• Easy to install
• Switch connection from remote on/off

Specifications

• Continuous Rating: 100Amp
• Input Voltage: 9-32VDC
• Output Voltage: Equal to input voltage when operating
• Operating temperature: -25°C to +60°C
• Weight: 530 grams
• Dimensions: 124 x 97 x 51mm

Applications

• Commercial service vehicles
• Ambulances
• Fire engines
• Military vehicles
• General protection of starter battery from discharge from using external appliances connected to battery or inverter

Part Number: PPT-7009
