VG309-2

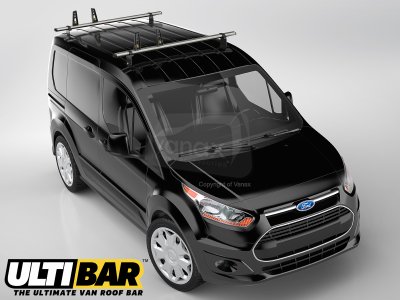

2 aerodynamic heavy duty ULTI bars incl. 4 FREE load stops by Van Guard (to suit all variants of latest model).

• ULTI bars made from anodised aluminium so won’t corrode.
• Lightweight and extremely strong.
• Comes with 2 FREE pairs of easily adjustable load stops.
• Range of roof accessories available to fit innovative T-track – load stops, eye bolts and beacon brackets.
• Designed and made in Britain.Affordable.
• At least 89% less drag than our nearest competitor’s aerodynamic bar*.
• Less drag should mean fewer trips to the fuel station.
• Up to 60% to 70% quieter than other leading bars*.
• 10% stronger than previous aluminium bar – each bar can now carry up to 55kg*.
• Crash tested to 20g*.

*Verifiable source information available on our Product Testing page.

Technical Information

• Dimensions: Cross-members (mm) – L x W x D = 1400 x 60 x 30.
• Load carrying capacity - 55kg per bar distributed evenly to the maximum load carrying capacity (refer to vehicle handbook).
• Comes complete with galvanised & powder coated steel brackets.
• This product is suitable for SWB & LWB Transit Connect Jan 2014 onwards models only.
• Please view image thumbnails for latest shape model.

Fitting

• Approximate fitting time 30-35 minutes.
• Detailed fitting instructions & fixings are supplied with this product.
• Retain instructions for future reference.
• Designed to utilise the vehicle manufacturers’ mounting points.To secure the front bar it is necessary to loosen the internal headliner enough to acces the inner skin of the van to tighten the foot brackets. There are 4 fixings points on the SWB and 5 on the LWB van but the front one on both is difficult to get to as it is hidden under the internal headcloth. An extended front fixing tool that reaches up to the bolt-through the fixing point is supplied with every kit. To access it, you simply slide your thumb under the lining edge rubber, part the two gently and position the tool in place. You then bolt down through from the top.One-man fit.
• Maximum load is in accordance with the vehicle manufacturer’s load bearing capacity (refer to vehicle handbook).
• Packaged Weight: 8kg

Part No: VG309-2
